Product Summary

The g5a-234p-5vdc is a low signal relay.

Parametrics

g5a-234p-5vdc absolute maximum ratings: (1)Rated load: 0.50 A at 30 VAC, 1 A at 30 VDC; (2)Carry current: 1 A; (3)Max. operating voltage: 125 VAC, 125 VDC; (4)Max. operating current: 1 A (AC)1 A (DC); (5)Max. switching capacity: 37.50 VA, 33 W; (6)Min. permissible load: 10 μA, 10 mVDC.

Features

g5a-234p-5vdc features: (1)Subminiature 8.40 H x 9.90 W x 16 L mm; (2)Unique moving-loop armature reduces relay size, magnetic interference, and contact bounce time; (3)Low nominal power consumption; (4)Bifurcated crossbar contact assures reliable switching of loads as low as 10 mVDC, 0.1 mA (reference value); (5)Available in standard and ultrasonic cleaning versions; (6)Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock; (7)Single or double coil winding types available; (8)RoHS Compliant.

Diagrams

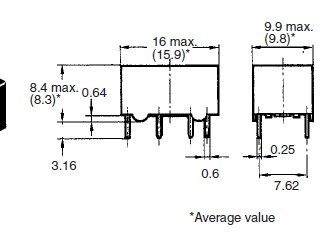

g5a-234p-5vdc pin connection
