Product Summary

The g5a-237p 24vdc is designed as a low signal relay.

Parametrics

g5a-237p 24vdc absolute maximum ratings: (1)Contact resistance: 50 mΩ max.; (2)Operate time: 50 ms max. (mean value: approx. 2.4 ms); (3)Release time: 5 ms max. (mean value: approx. 1.1 ms); (4)Max. Operating Frequency: Mechanical: 36000 operations/hr and electrical: 1,8000 operations/hr (under rated load); (5)Insulation resistance: 1000 MΩ max. (at 250 VDC); (6)Ambient temperature: Operating: -40 to 70°C (-40 to 158°F) with no icing.

Features

g5a-237p 24vdc features: (1)Subminiature 8.40 H x 9.90 W x 16 L mm; (2)Unique moving-loop armature reduces relay size, magnetic interference, and contact bounce time; (3)Low nominal power consumption; (4)Bifurcated crossbar contact assures reliable switching of loads as low as 10 mVDC, 0.1 mA (reference value); (5)Available in standard and ultrasonic cleaning versions; (6)Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock.; (7)Single or double coil winding types available; (8)RoHS Compliant.

Diagrams

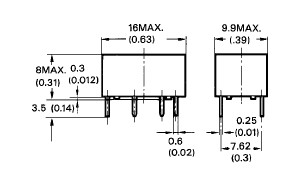

g5a-237p 24vdc dimension figure
