Product Summary

The g5ca-1a-e-12v is designed as a power PCB relay.

Parametrics

g5ca-1a-e-12v absolute maximum ratings: (1)Contact resistance: 30 mΩ max.; (2)Operate time: 10 ms max. (mean value: 6.70 ms) or 15 ms max. for high sensitivity type (mean value: 7.30 ms); (3)Release time: 10 ms max. (mean value: 0.90 ms); (4)Operating Frequency: Mechanical: 18000 operations/hr and electrical: 1,200 operations/hour; (5)Insulation resistance: 1000 MΩ max. (at 500 VDC); (6)Ambient temperature: Operating: -25 to 70°C (-13 to 158°F); (7)Humidity: 45% to 85% RH; (8)Service life: Mechanical-20 million operations min. (at operating frequency of 18,000 operations/hour); (9)Weight: Approx. 8 g (0.28 oz).

Features

g5ca-1a-e-12v features: (1)Miniature 16 W x 22 L x 10.9 H mm (0.63 W x 0.87 L x 0.43 H in); (2)Low power consumption (150 mW); (3)Flux tight and fully sealed construction; (4)Long electrical service life; (5)High switching capacity; (6)Ideal for switching power supplies on small appliances and output to industrial equipment.

Diagrams

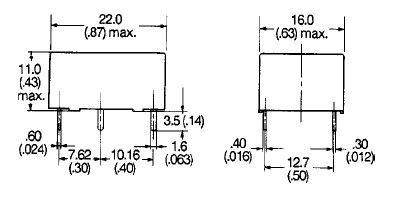

g5ca-1a-e-12v dimension figure
