Product Summary

The g5j-1-tp-12v is designed as a PCB relay, and it is ideal for microwave oven magnetrons and heater switching.

Parametrics

g5j-1-tp-12v absolute maximum ratings: (1)Contact resistance: 30 mΩ max.; (2)Operate time: 20 ms max.; (3)Release time: 5 ms max.; (4)Impulse withstand voltage: 10 kV (1.2 x 50μs) between coil and contacts; (5)Insulation resistance: 1000 MΩ max. (at 500 VDC); (6)Ambient temperature: Operating: –25°C to 70°C (with no icing); (7)Humidity: 45% to 85% RH; (8)Life expectancy: Mechanical - 2,000,000 operations min. (18,000 operations/hr) and electrical - 100,000 operations min. (1,800 operations/hr); (9)Weight: Approx. 22.5g.

Features

g5j-1-tp-12v features: (1)Dual tab/PCB terminals; (2)Small, space-saving bottom surface area; (3)High impulse withstand voltage: 10 kV.

Diagrams

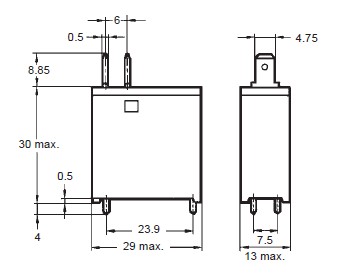

g5j-1-tp-12v dimension figure
