Product Summary

The g5v-2-5v is designed as a low signal relay.

Parametrics

g5v-2-5v absolute maximum ratings: (1)Contact resistance: 50 mΩ max.; (2)Operate time: 7 ms max. (mean value: approx. 3.5 ms); (3)Release time: 3 ms max. (mean value: approx. 0.8 ms); (4)Bounce time:0.5 ms or 3.5 ms; (5)Insulation resistance: 1000 MΩ max. (at 500 VDC); (6)Ambient temperature: -25° to 70°C (-13° to 158°F); (7)Humidity: 35% to 85% RH; (8)Life expectancy: Mechanical - 15 million operations min. (at 36,000 operations/hour); (9)Weight: 6 g (0.21 oz).

Features

g5v-2-5v features: (1)Suitable for handling low signals in computer peripherals, telecommunications and security equipment; (2)Capable of switching loads up to 2 A; (3)Conforms to FCC part 68 1500 V surge withstand; (4)Reliable bifurcated crossbar contacts; (5)Fully-sealed construction.

Diagrams

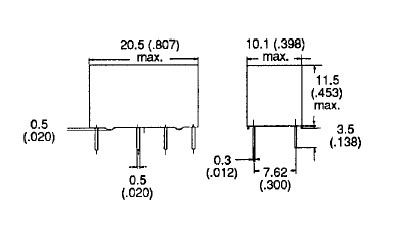

g5v-2-5v dimension figure
