Product Summary

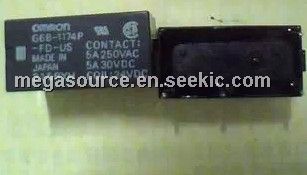

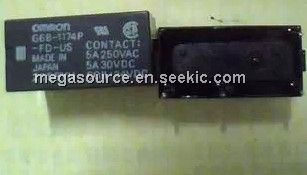

The g6b-1174p-fd-us-12v is a sub-miniature relay.

Parametrics

g6b-1174p-fd-us-12v absolute maximum ratings: (1)Rated voltage: 24 VDC; (2)Rated current: 67 mA; (3)Coil resistance: 1,920 Ω; (4)Must operate voltage: 70% max. of rated voltage; (5)Must release voltage: 10% min. of rated voltage; (6)Power consumption: 300 mW; (7)Ambient temperature Operating: -25°C to 70°C.

Features

g6b-1174p-fd-us-12v features: (1)Sub-miniature: 20 x 10 x 10 mm (L x W x H); (2)Low power consumption: 200 mW; (3)Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (4)Single- and double-winding latching types also available.

Diagrams

g6b-1174p-fd-us-12v pin connection
