Product Summary
The g6e-134p-5v is a Low Signal Relay.
Parametrics
g6e-134p-5v absolute maximum ratings: (1)Contact resistance: 50 mΩ max; (2)Operate time (set) time: 5 ms max; (3)Release time (reset) time: 5 ms max; (4)Min. set/reset signal width Latching type: 15 ms min. (at 23℃); (5)Insulation resistance: 1,000 MΩ min. (at 500 VDC); (6)Dielectric strength: 1,500 VAC, 50/60 Hz for 1 minute between coil contacts, 1,000 VAC, 50/60 Hz for 1 minute between contacts of same pole; (7)Surge withstand voltage: 1,500 V (10 x160 μs) (conforms to FCC Part 68), 2,500 V (2 x 10 μs) (Telcordia Requirement); (8)Ambient temperature: -40℃ to 70℃ with no icing; (9)Humidity: 5% to 85% RH; (10)Weight: Approx. 2.7 g.
Features
g6e-134p-5v features: (1)Subminiature 7.87 H x 9.91 W x 16 L mm; (2)High sensitivity with pick-up coil power of 98 mW; (3)Surge withstand voltage meets FCC Part 68 requirements; (4)Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (5)Bifurcated crossbar contact assures high reliability; (6)Single and Dual coil latching versions available; (7)Fully sealed construction; (8)RoHS Compliant.

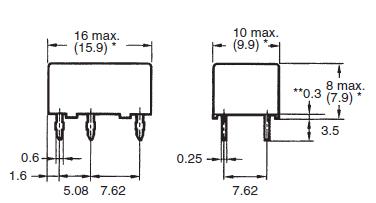

Diagrams
