Product Summary

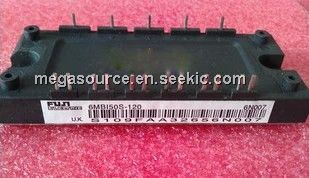

The 6mbi50s-120 is an IGBT module. Application areas of the 6mbi50s-120 include Inverter for motor drive, AC and DC servo drive amplifier.
Parametrics
6mbi50s-120 absolute maximum ratings: (1)Collector-Emitter voltage: 1200V; (2)Gate-Emitter voltage: ±20V; (3)Collector current Continuous: Tc=25℃, IC: 50A; ICM: 100A; (4)Max. power dissipation (1 device): 360W; (5)Operating temperature: +150℃.
Features
6mbi50s-120 features: (1)Compact package; (2)P.C.board mount; (3)Low VCE(sat).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 6MBI50S-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
