Product Summary

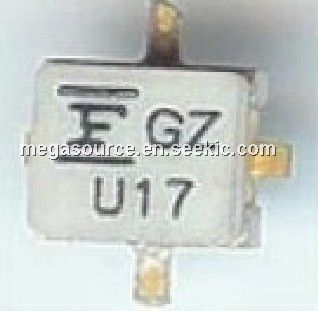

The flu17mz is a GaAs FET designed for base station applications in the PCN/PCS frequency range. It uses a surface mount package that has been optimized for high volume cost driven applications.
Parametrics
flu17mz absolute maximum ratings: (1)Drain-Source Voltage: 15 V; (2)Gate-Source Voltage: -5 V; (3)Total Power Dissipation: 7.5 w; (4)Storage Temperature: -65 to +175 ℃; (5)Channel Temperature: +175 ℃.
Features
flu17mz features: (1)High Output Power: P1dB=32.5dBm (Typ.); (2)High Gain: G1dB=13.5dB (Typ.); (3)High PAE: ηadd=46% (Typ.); (4)Hermetic Metal/Ceramic (SMT) Package; (5)Tape and Reel Available.

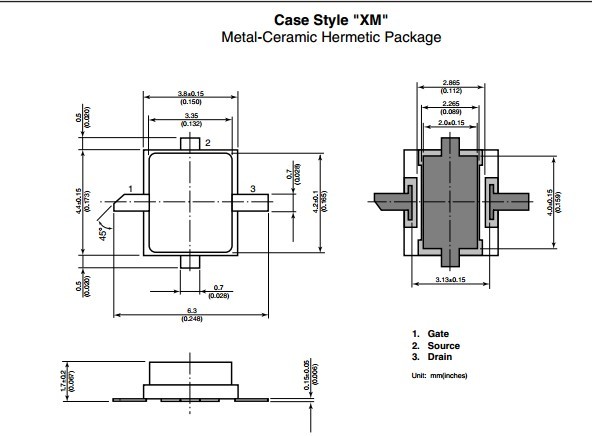

Diagrams
