Product Summary

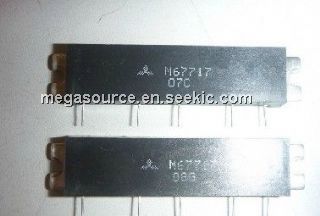

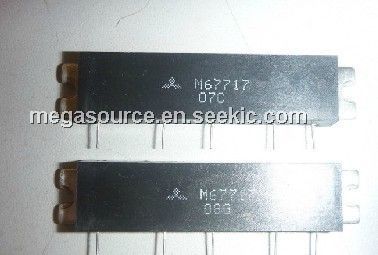

The m67717 is a 4A FM mobile radio.

Parametrics

m67717 absolute maximum ratings: (1)supply voltage: 9V; (2)gate bias voltage: 17V; (3)input power: 7.0mW; (4)output power: 7W; (5)operating case temperature: -30 to 110°C; (6)storage temperature: -40 to 110°C; (6)total current: 4A.

Features

m67717 features: (1)frequency range: 872 to 905MHz; (2)output power: 7.0 to 9.0W; (3)total efficiency: 35% to 40%; (4)2nd. harmonic: -30.0dbc; (5)input VSWR: 2.8.

Diagrams

m67717 block diagram
