Product Summary
The mg100m2yk1 is a transistor module designed for use in various types of motor control and other high power switching applications and consist of insulated type darlington transistors. The electrodes are fully isolated from heat sink. Single ended electrode construction is used to greatly simplify mounting.
Parametrics
mg100m2yk1 absolute maximum ratings: (1)VCBO(V): 1000; (2)VCBX(V): 1000; (3)VEBO(V): 7; (4)IC(A): 30; (5)ICP(A): 100; (6)Ia(A): 10; (7)Pc(W): 700; (8)Tj(℃): 150; (9)Tstg(℃): -40 to 125.
Features
mg100m2yk1 features: (1)Electrodes are isolated from the heat sink; (2)High DC current gain (hEF) (80 or 100 min); (3)Low saturation voltage; (4)Wide safe operating area.

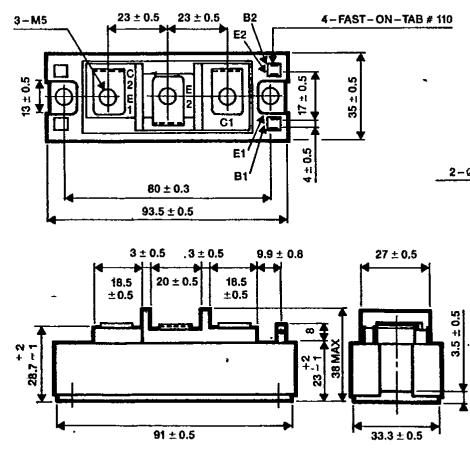

Diagrams
