Product Summary
The mrf15030 is a 30W RF power transistor. It is designed for 26 volts microwave large–signal, common emitter, class A and class AB linear amplifier applications in industrial and commercial FM/AM equipment operating in the range 1400-1600 MHz.
Parametrics
mrf15030 absolute maximum ratings: (1)Collector-Emitter Voltage VCEO: 25 Vdc; (2)Collector-Emitter Voltage VCES: 60 Vdc; (3)Emitter-Base Voltage VEBO: 4 Vdc; (4)Collector-Current-Continuous IC: 10 Adc; (5)Total Device Dissipation @ TC = 25°C: 125W, Derate above 25°C: 0.71W/°C; (6)Storage Temperature Range Tstg: -65 to +150 °C.
Features
mrf15030 features: (1)Third Order Intercept Point - 53.5 dBm Typ @ 1490 MHz, VCE = 24 Vdc, IC = 2.5 Adc; (2)Characterized with Series Equivalent Large-Signal Parameters from 1400-1600 MHz; (3)Characterized with Small Signal S-Parameters from 1000-2000 MHz; (4)Silicon Nitride Passivated; (5)100% Tested for Load Mismatch Stress at all Phase Angles with 3: 1 Load VSWR @ 28Vdc, at Rated Output Power; (6)Gold Metallized, Emitter Ballasted for Long Life and Resistance to Metal Migration; (7)Circuit board photomaster available upon request by contacting RF Tactical Marketing in Phoenix, AZ.

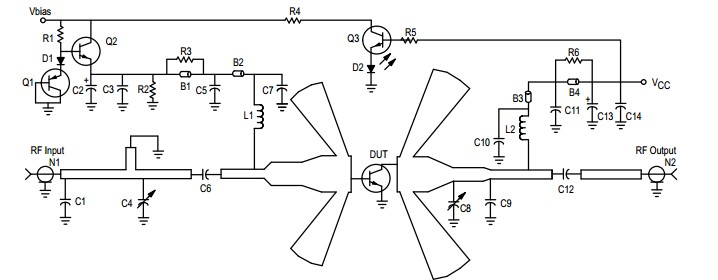

Diagrams
