Product Summary
The tim5964-18da is a microwave power GaAs FET.
Parametrics
tim5964-18da absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 10.0A; (4)Total Power Dissipation (Tc= 25 °C )PT: 62.5W; (5)Channel Temperature Tch: 175°C; (6)Storage Tstg: -65 to +175°C.
Features
tim5964-18da features: (1)broad band internallymatched fet; (2)high power P1dB=41.5dBm at 5.9GHz to 6.4GHz; (3)high gaiG1dB=10.0dB at 5.9GHz to 6.4GHz; (4)hermetically sealed package.

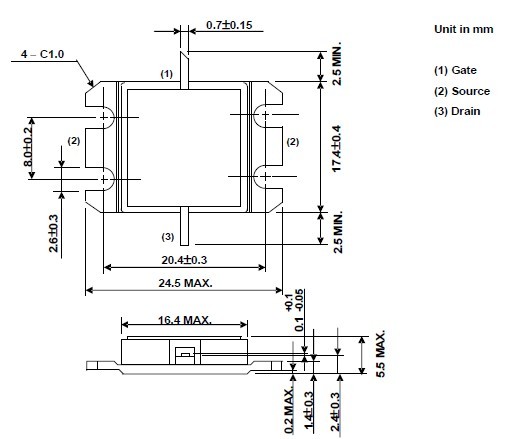

Diagrams
