Product Summary
The tim5964-30sl is a microwave power GaAs FET.
Parametrics
tim5964-30sl absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 20.0A; (4)Total Power Dissipation (Tc= 25 °C)PT: 115.4W; (5)Channel Temperature Tch: 175°C; (6)Storage Tstg: -65 to +175°C.
Features
tim5964-30sl features: (1)Low intermodulation distortion- IM3= -45 dBc at Po = 34.5dBm, Single carrier level; (2)High power- P1dB = 45.0 dBm at 5.9ghz to 6.4ghz; (3)High gain- G1dB = 8.0dB at 5.9ghz to 6.4ghz; (4)Broad band internally matched; (5)Hermetically sealed package.

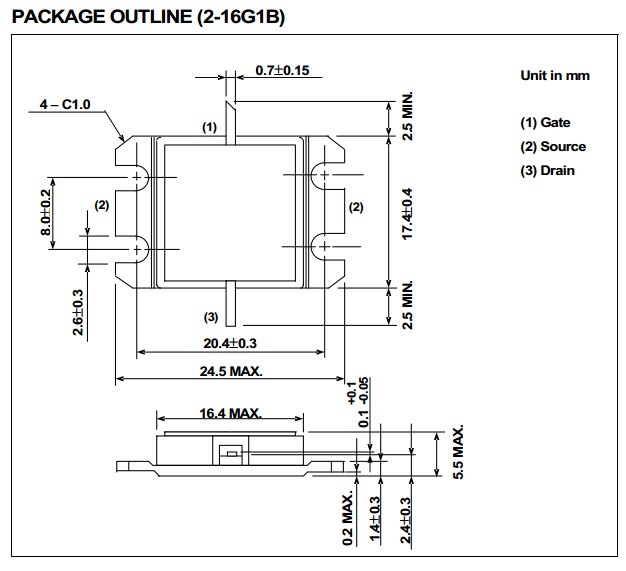

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM5964-30SL |
Other |
|
Data Sheet |
Negotiable |
|
||||
