Product Summary
The tim5964-8a is a microwave power GaAs FET.
Parametrics
tim5964-8a absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 8A; (4)Total Power Dissipation (Tc= 25 °C)PT: 37.5 W; (5)Channel Temperature Tch: 175°C; (6)Storage Temperature Tstg: -65 to +175°C.
Features
tim5964-8a features: (1)broad band internally matched fet; (2)high power P1dB=39 dBm at 5.9GHz to 6.4GHz; (3)high gain G1dB= 8.0dB at 5.9GHz to 6.4GHz; (4)hermetically sealed package.

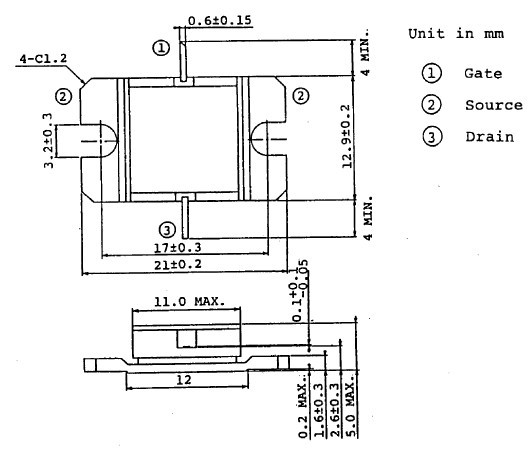

Diagrams
