Product Summary
The tim7785-8ul is a microwave power GAAS FET.
Parametrics
tim7785-8ul absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 7.0A; (4)Total Power Dissipation (Tc= 25 °C)PT: 37.5W; (5)Channel Temperature Tch: 175°C; (6)Storage Temperature Tstg: -65 to +175°C.
Features
tim7785-8ul features: (1)high power: p1db=39.5dbm at 7.7ghz to 8.5ghz; (2)broad band internally matched; (3)high gain: g1db=8.5db at 7.7ghz to 8.5ghz; (4)hermetically sealed package.

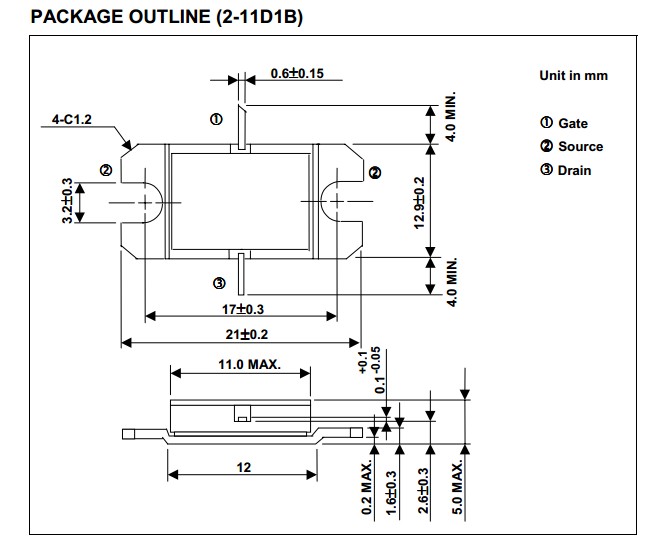

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM7785-8UL |
Other |
|
Data Sheet |
Negotiable |
|
||||
