Product Summary

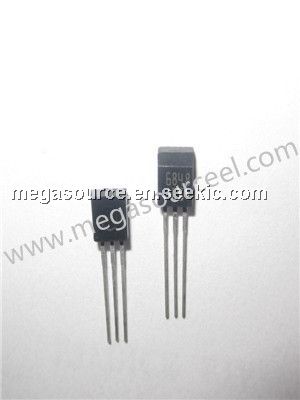

The DN6848 is a combination of a Hall element, amplifier, Schmitt circuit, and stabilized power supply/temperature compensator integrated on an identical chip by using the IC technology. The DN6848 amplifies Hall element output at the amplifier, converts into a digital signal through the Schmitt circuit, and drives the TTL or MOS IC directly. The DN6848 can be applied in speed sensors, position sensors, rotation sensors, keyboard switches, and microswitches.
Parametrics
DN6848 absolute maximum ratings: (1)Supply voltage: 18V; (2)Supply current: 8mA; (3)Circuit current: 20mA; (4)Power dissipation: 150mW; (5)Operating ambient temperature: –40 to +100°C; (6)Storage temperature: –55 to +125°C.
Features
DN6848 features: (1)High sensitivity and low drift; (2)Stable temperature characteristics due to the additional temperature compensator; (3)Wide operating supply voltage range (VCC=4.5 to 16V); (4)Operating in one way magnetic field; (5)TTL and MOS ICs directly drivable by output; (6)Output open collector.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DN6848 |
|
IC HALL EFF SENSOR UNI-D 3-SIP |
Data Sheet |
Negotiable |
|
||||
 |
DN6848S |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
DN6848SE |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
DN6848S-E1V |
|
IC HALL EFF SENSOR UNI-D SOH-4D |
Data Sheet |
Negotiable |
|
||||
|
DN6848TE |
Other |
|
Data Sheet |
Negotiable |
|
||||
