Product Summary

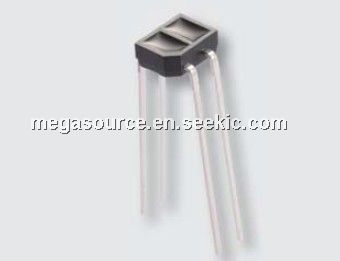

The ITR20004 is a light reflection switch which includes a GaAs IR-LED transmitter and a NPN photo transistor with a high photosensitive receiver for short distance, operating in the infrared range. Both components are mounted side- by- side in a plastic package. The applications of the ITR20004 are Camera, VCR, Floppy disk driver, Cassette type recorder, Various microcomputer control equipment.
Parametrics
ITR20004 absolute maximum ratings: (1)Power Dissipation at(or below)25℃: 130 mW; (2)Reverse Voltage VR: 5 V; (3)Forward Current IF: 50 mA; (4)Peak Forward Current: 1 A; (5)Collector Power Dissipation PC: 75 mW; (6)Collector Current IC: 50 mA; (7)Collector-Emitter Voltage B VCEO: 30 V; (8)Emitter-Collector Voltage B VECO: 5 V; (9)Operating Temperature Topr: -25~+85 ℃; (10)Storage Temperature Tstg: -40~+85 ℃; (11)Lead Soldering Temperature (*2)Tsol: 260 ℃.
Features
ITR20004 features: (1)Fast response time; (2)High sensitivity; (3)Cut-Off visible wavelength; (4)Thin; (5)Compact; (6)Pb free.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ITR20004 |
Everlight |
Optical Switches, Reflective, with Phototransistor Output Opto Interrupter |
Data Sheet |
|
|
||||||||||||
