Product Summary

The awm1100v is a 25psi Airflow Sensor. Take advantage of microbridge mass flow sensor technology. The awm1100v mass flow sensor provides all of the outstanding performance benefits of the
standard AWM2000 series in a more cost-effective sensor platform. This device pro-vides accurate, repeatable flow sensing.

Parametrics

awm1100v general specifications: (1)Excitation (VDC): 8.0 to 15; (2)Power Consumption (mW): 30 to 50; (3)Null Voltage (mV): -1.0 to +1.0; (4)Response Time (msec): 1.0 to 3.0; (5)Common Mode Pressure (psi): 25.

Features

awm1100v features: (1)Cost-effective microbridge technology; (2)Accurate, repeatable airflow sensing; (3)Bi-directional sensing capability; (4)Low differential pressure sensing.

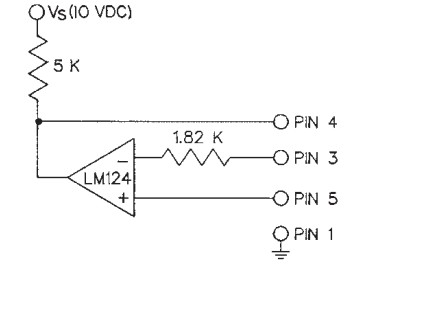

Diagrams

awm1100v plackage dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AWM1100V
AWM1100V
Honeywell
Flow Sensors AirFlow/New Pressure AIRFLOW SENSORS
Data Sheet
0-28: $62.57
28-50: $57.56
50-100: $52.96
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AWM1100V
AWM1100V
Honeywell
Flow Sensors AirFlow/New Pressure AIRFLOW SENSORS
Data Sheet
0-28: $62.57
28-50: $57.56
50-100: $52.96
AWM1200V
AWM1200V
Honeywell
Flow Sensors +/-10mbar [4 in H2O] 20mV dc @ 2.0 in H2O
Data Sheet
0-1: $55.34
1-25: $45.04
25-100: $41.39
AWM1300V
AWM1300V
Honeywell
Flow Sensors AIRFLOW/NEW PRESSURE
Data Sheet
0-28: $62.57
28-50: $57.56
50-100: $52.96
