Product Summary

The awm92100v is a Mass flow sensor for gases. It is NOT designed for liquid flow and will be damaged by liquid flow through the sensor.

Parametrics

awm92100v absolute maximum ratings: (1)Supply voltage: 8 to 15 V, typ. 10 ±0.01 V; (2)Power consumption: 50 mW; (3)Temperature limits: Operating -25 to 85°C, Storage -40 to 90°C; (4)Mechanical shock: 100 g (5 drops, 6 axes).

Features

awm92100v features: (1)Ranges 0...±200 sccm1 or 0...±2 "H2O (0...±5 mbar); (2)Bidirectional sensing; (3)Actual mass flow sensing; (4)Low differential pressure sensing.

Diagrams

awm92100v plackage dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

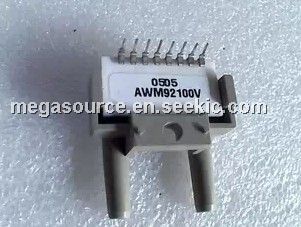

AWM92100V
AWM92100V
Honeywell
Flow Sensors 4.5to26.5V SING.HALL 2Hz to 25kHz 14.9mm
Data Sheet
0-20: $32.35
20-40: $30.73
40-100: $29.12
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AWM92100V
AWM92100V
Honeywell
Flow Sensors 4.5to26.5V SING.HALL 2Hz to 25kHz 14.9mm
Data Sheet
0-20: $32.35
20-40: $30.73
40-100: $29.12
AWM92200V
AWM92200V
Honeywell
Flow Sensors +/- 5 mbar 10V Airflow Sensors
Data Sheet
0-820: $24.27
AWM92101V
AWM92101V
Honeywell
Flow Sensors Airflow
Data Sheet
0-65: $59.57
65-100: $56.44
