Product Summary

The AA104VC05 is a 1 bit, GaAs IC FET digital attenuator in a low cost SOT-6 package. The AA104VC05 has up to 32 dB total attenuation.The attenuator requires two lines of voltage control. The AA104VC05 is particularly suited where high attenuation accuracy, low insertion loss and low intermodulation products are required. A total attenuation of 63 dB in 1 dB steps can be obtained by combining the two attenuators.

Parametrics

AA104VC05 absolute maximum ratings: (1)RF input power: 1 W > 500 MHz 0/8 V; 0.5 W @ 50 MHz 0/8 V; (2)Supply voltage: +8 V; (3)Control voltage: -0.2 V, +8 V; (4)Operating temperature: -40°C to +85°C; (5)Storage temperature: -65°C to +150°C.

Features

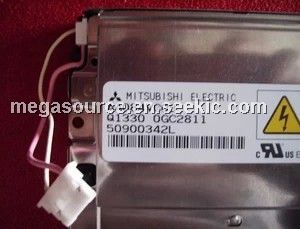

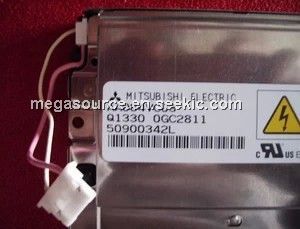

AA104VC05 features: (1)10.4” VGA color display with high luminance (400cd/m2); (2)Wide viewing angle (Vertical:120, Horizontal:140); (3)Built in long life lamps (50,000 h).

Diagrams

AA104VC05 pin connection
