Product Summary
The td015theb2 is a plastic optical fiber cable and accessorie. The td015theb2 series of plastic fiber optic cables are constructed of a single step-index fiber sheathed in a black polyethylene jacket. Applications are (1)Industrial Data Links for Factory Automation and Plant Control; (2)Intra-System Links; Boardto- Board, Rack-to-Rack; (3)Telecommunications Switching Systems; (4)Computer-to-Peripheral Data Links, PC Bus Extension; (5)Proprietary LANs; (6)Digitized Video; (7)Medical Instruments; (8)Reduction of Lightning and Voltage Transient Susceptibility; (9)High Voltage Isolation.
Parametrics
td015theb2 absolute maximum ratings: (1)Storage and Operating Temperature TS,O: -55 +85 °C; (2)Recommended Operating Temperature TO: -40 +85 °C; (3)Installation Temperature TI: -20 +70 °C; (4)Short Term Tensile Single Dual Channel FT: 100 N; (5)Short Term Bend Radius r: 25 mm; (6)Long Term Bend Radius r: 35 mm; (7)Long Term Tensile Load FT: 1 N; (8)Flexing : 1000 Cycles.
Features
td015theb2 features: (1)Compatible with Agilent Versatile Link Family of Connectors and Fiber Optic Components; (2)1 mm Diameter Plastic Optical Fiber (POF)in Two Grades: Low Cost Standard POF with 0.22 dB/m Typical Attenuation, or High Performance Extra Low Loss POF with 0.19 dB/m Typical Attenuation.

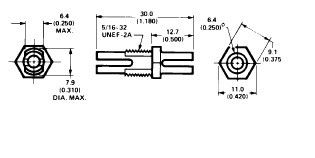

Diagrams
