Product Summary
The aa104vc07 is a gaas ic 1 bit digital attenuator. This attenuator has up to 32 dB total attenuation.The attenuator requires two lines of voltage control. The AA104-73 is particularly suited where high attenuation accuracy,low insertion loss and low intermodulation products are required.
Parametrics
aa104vc07 absolute maximum ratings: (1)insertion loss dc–1.0 ghz 0.8 to 1.0 db; (2)Attenuation Range DC–1.0 GHz: 32 dB; (3)Attenuation Accuracy3, 4 DC–0.5 GHz: ± (0.4 + 10% of Attenuation Setting in dB)dB; (4)Switching Characteristics6 Rise, Fall (10/90% or 90/10% RF): 50 ns.
Features
aa104vc07 features: (1)1 Bit Attenuation of 32 dB DC–1 GHz, 27 dB 1–2 GHz, 24 dB 2–2.5 dB; (2)Combine with AA260-85 or AA101-80 for 63 dB 6 Bit Solution; (3)Tune with One Capacitor and/or Resistor to Desired Operating Frequency; (4)and Attenuation; (5)Ideal for Both IF and RF Applications Including Cable, GSM, PCS, EDGE, 3G and ISM.

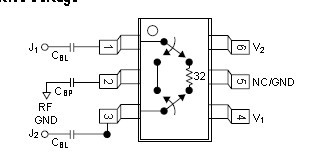

Diagrams
