Product Summary
The aa121sp07 is 12.1" color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel, driver ICs, control circuit, and backlight unit. By applying 6 bit digital data, 1024 × 768, 260 K-color images are displayed on the 12.1" diagonal screen. Input power voltage is single 3.3V for LCD driving.
Parametrics
aa121sp07 absolute maximum ratings: (1)Power Supply Voltage for LCD, VCC: 0 to 4.0 V; (2)Lamp Voltage, VL: 0 to 2000 Vrms; (3)Lamp Current, IL: 0 to 18 mArms; (4)Lamp Frequency, FL: 80 kHz max; (5)Operation Temperature(Panel), Top(Panel): 0 to 60 ℃; (6)Operation Temperature(Ambient), Top(Ambient): 0 to 60 ℃; (7)Storage Temperature, Tstg: -20 to 70 ℃.
Features
aa121sp07 specifications: (1)Display Area (mm): 245.76 × 184.32(12.106-inch diagonal); (2)Number of Dots: 1024 × 3 (H) × 768 (V); (3)Pixel Pitch (mm): 0.240 (H) × 0.240 (V); (4)Color Pixel Arrangement: RGB vertical stripe; (5)Display Mode: normally white; (6)Number of Color: 260 K; (7)Optimum Viewing Angle(Contrast ratio): 6 o clock; (8)Brightness (cd/m2): 320; (9)Module Size (mm): 280.0 (W) × 210.0 (H) × 12.0 (D); (10)Module Mass (g): 720; (11)Backlight Unit: CCFL, 2-tubes, edge-light, replaceable; (12)Surface Treatment: Antiglare and hard-coating 3H.

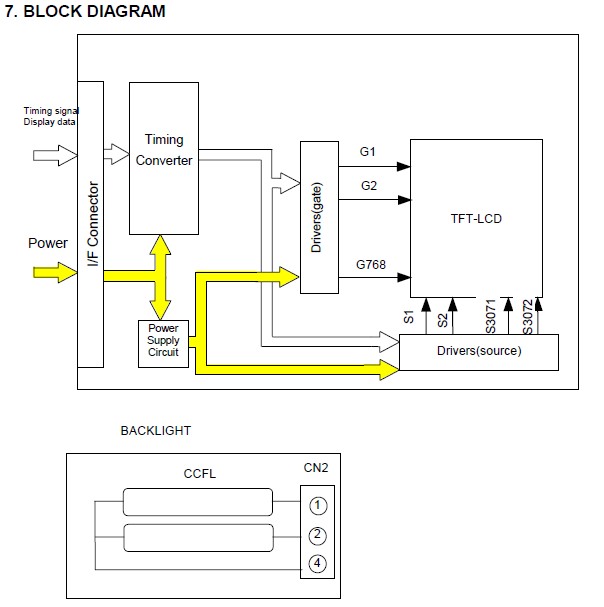

Diagrams
