Product Summary

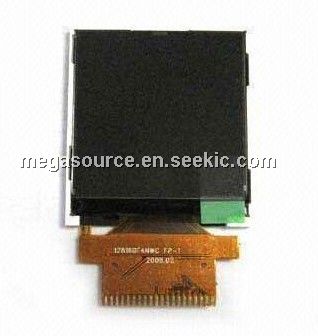

The ls013b4dn01 is a TFT-LCD module. The TFT-LCD module is a reflective active-matrix with slightly transmissive memory liquid crystal display module with CG silicone thin film transistor. The ls013b4dn01 has many characteristics such as display control by serial data signal communication, arbitrary line data renewable, 1bit internal memory for data storage within the panel, thin, light-weight and compact module with monolithic technology, and super low power consumption TFT panel.

Parametrics

ls013b4dn01 absolute maximum ratings: (1)Power supply voltage: VDDA -0.3 to +5.8 V; (2)Input signal voltage(low): -0.3 to VDD V; (3)Strage Temperature: -30 to +80°C; (4)Operation Temperature: -20 to +70°C.

Features

ls013b4dn01 features: (1)Reflective panel of white and black with aspect ratio of 1:1 ; (2)1.35 screen has 96x 96 resolusion.( 9216 pixels stripe array) ; (3)Display control by serial data signal communication; (4)Arbitrary line data renewable; (5)1bit internal memory for data storage within the panel; (6)Thin, light-weight and compact module with monolithic technology; (7)Super low power consumption TFT panel; (8)Zebra connecter.

Diagrams

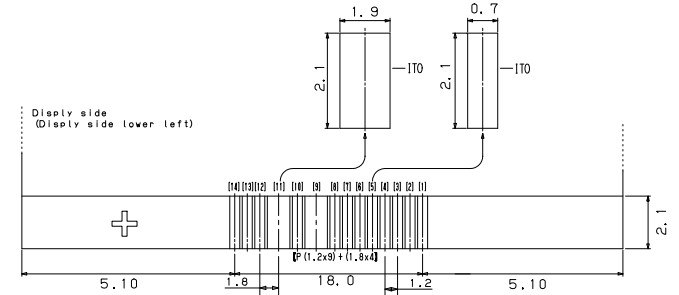

ls013b4dn01 outline dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LS013B4DN01
LS013B4DN01

Sharp Microelectronics

TFT Displays & Accessories 1.35" 96x96 w/o FPC Mono Memory LCD

Data Sheet

0-1: $9.15
1-5: $7.80
