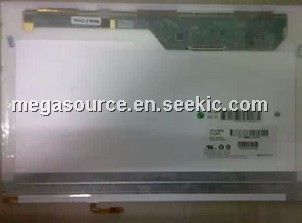

LP121SL

Product Summary

The lp121sl is a Color Active Matrix Liquid Crystal Display with an integral White LED backlight system. The matrix employs a-Si Thin Film Transistor as the active element. The lp121sl is a transmissive type display operating in the normally white mode. This TFT-LCD has 12.1 inches diagonally measured active display area with WXGA resolution(800 vertical by 1280 horizontal pixel array). Each pixel of the lp121sl is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The lp121sl has been designed to apply the interface method that enables low power, high speed, low EMI. The lp121sl is intended to support applications where thin thickness, low power are critical factors and graphic displays are important. In combination with the verticalarrangement of the sub-pixels, the lp121sl characteristics provide an excellent flat display for office automation products such as Notebook PC.

Parametrics

lp121sl absolute maximum ratings: (1)Power Input Voltage, VCC: -0.3 to 4.0Vdcat 25 ± 5℃; (2)Operating Temperature, TOP: 0 to 50 ℃; (3)Storage Temperature, HST: -20 to 60 ℃ ; (4)Operating Ambient Humidity, HOP: 10 to 90 %RH; (5)Storage Humidity, HST: 10 to 90 %RH.

Features

lp121sl features: (1)Active Screen Size: 12.1 inches diagonal; (2)Outline Dimension: 275.8 (H) × 178.1 (V) × 5.5(D, max) mm; (3)Pixel Pitch: 0.204 mm × 0.204 mm; (4)Pixel Format: 1280 horiz. By 800 vert. Pixels RGB strip arrangement; (5)Color Depth: 6-bit, 262,144 colors; (6)Surface Treatment: Glare treatment of the front polarizer; (7)Luminance, White: 220 cd/m2(Typ.5 point); (8)Power Consumption: Total 4.0 Watt(Typ.) @ LCM circuit 0.8Watt(Typ.), B/L input 3.2Watt(Typ.); (9)Weight: 270g(Max.); (10)Display Operating Mode:Transmissive mode, normally white; (11)RoHS Comply: Yes.

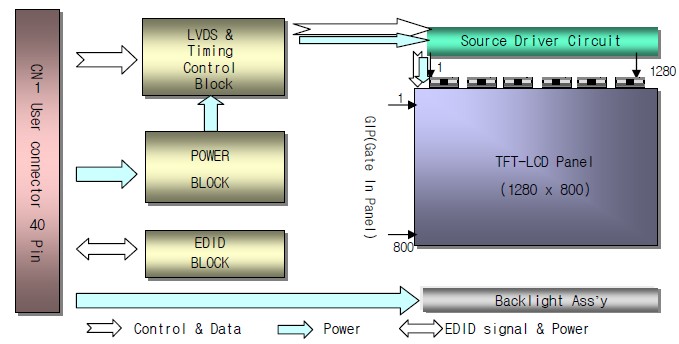

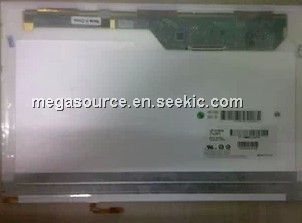

Diagrams
