Product Summary

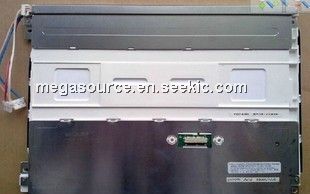

The lq104v1dg33 is a color TFT-LCD module.

Parametrics

lq104v1dg33 absolute maximum ratings: (1)Brightness: 350 cd/m2; (2)Contrast ratio: 300 : 1; (3)Power consumption: 7.4 W; (4)Outline dimensions (W x H x D): 265.0 x 195.0 x 11.0 mm; (5)Weight: 695 g; (6)Operating temperature: 0 to +55 °C; (7)Storage temperature: -25 to +70 °C.

Features

lq104v1dg33 features: (1)26 cm [10.4"] VGA format; (2)High brightness (350 cd/m2); (3)Wide viewing angle (Horizontal: 140° Vertical: 110°); (4)Built-in long life CCFT backlight (40 000 h).

Diagrams

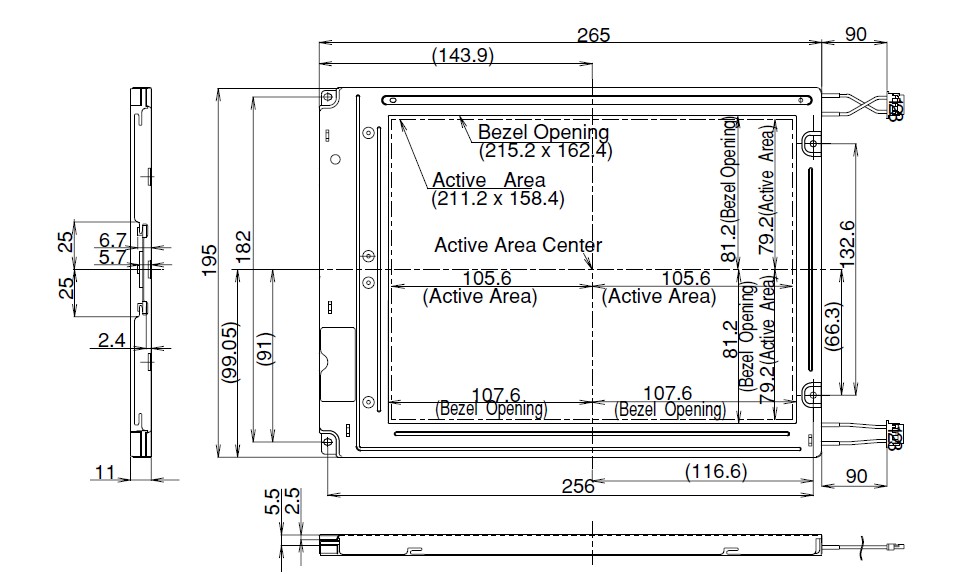

lq104v1dg33 pin connection
