Product Summary

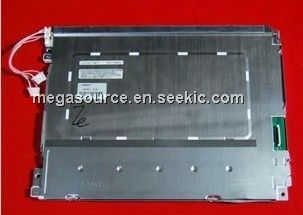

The lq104v1dw01 is a Color TFT-LCD Module.
Parametrics
lq104v1dw01 absolute maximum ratings: (1)Dot format (H x V): 640 x RGB x 480 dot; (2)Contrast ratio: 300 : 1; (3)Dot pitch (H x V): 0.11 x 0.33 mm; (4)Power consumption: 7.4 W; (5)Active area (H x V): 211.2 x 158.4 mm; (6)Outline dimensions (W x H x D): 265.0 x 195.0 x 11.0 mm; (7)Color: 262 144 color; (8)Weight: 695 g; (9)Input signal: 6-bit Digital RGB; (10)Operating temperature: 0 to +55℃; (11)Viewing direction: 6:00; (12)Storage temperature: -25 to +70℃.
Features
lq104v1dw01 features: (1)26 cm [10.4] VGA format; (2)High brightness (350 cd/m2); (3)Wide viewing angle; (4)Built-in long life CCFT backlight (40 000 h).

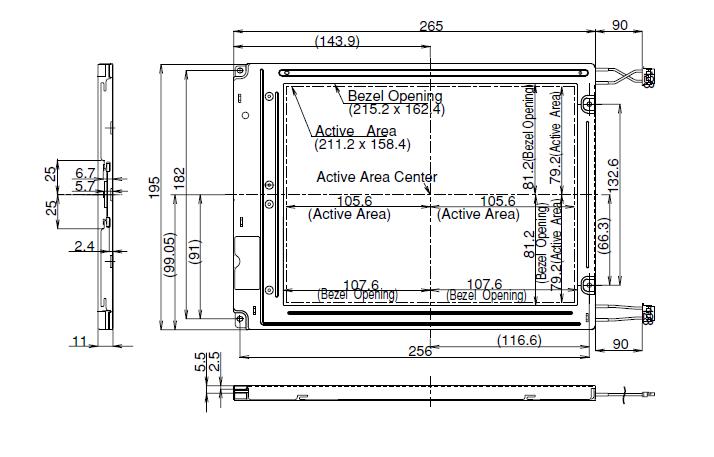

Diagrams
