Product Summary
The lq10d367 is a color TFT-LCD module.
Parametrics
lq10d367 absolute maximum ratings: (1)Brightness: 200 cd/m2; (2)Contrast ratio: 300 : 1; (3)Power consumption: 4.4 W; (4)Outline dimensions (W x H x D): 246.5 x 179.4 x 10.5 mm; (5)Weight: 550 g; (6)Operating temperature: 0 to +50 °C; (7)Storage temperature: -25 to +70 °C.
Features
lq10d367 features: (1)26 cm [10.4"] VGA format; (2)High brightness (200 cd/m2); (3)Wide viewing angle (horizontal: 140° vertical: 110°); (4)Built-in long life CCFT backlight (50 000 h).

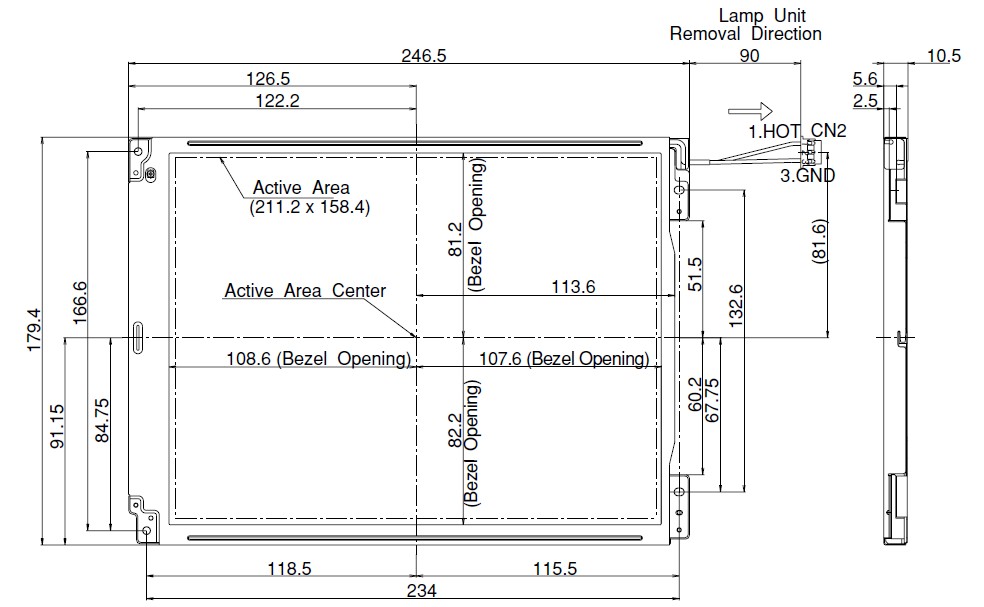

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ10D367 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
