Product Summary

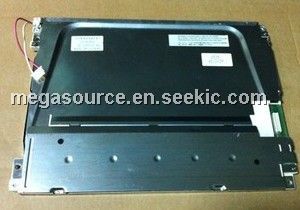

The lq10d368 is a TFT-LCD Module.
Parametrics
lq10d368 absolute maximum ratings: (1)Input voltage, VI: -0.3 to Vcc-0.3V; (2)+5V supply voltage, Vcc: 0 to 6V; (3)Storage temperature, Tstg: -30 to 70℃; (4)Operating temperature (Ambient), Topa: -10 to 65℃
Features
lq10d368 features: (1)Display size: 26 (10.4") Diagonalcm; (2)Active area: 211.2(H)×158.4(V)mm; (3)Pixel format: 640(H)×480(V)pixel(1 pixel＝R＋G＋B dots); (4)Pixel pitch: 0.330(H)×0.330(V)mm; (5)Pixel configuration: R,G,B vertical stripe; (6)Display mode: Normally white; (7)Unit outline dimensions *1246.5(W)×179.4(H)×11.0max(D)mm; (8)Mass: 520(max)g; (9)Surface treatment: Anti-glare and hard-coating 3H.

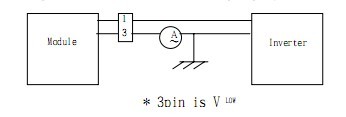

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ10D368 |
Sharp Microelectronics |
TFT Displays & Accessories 10.4" 1 x CCFT VGA |
Data Sheet |
Negotiable |
|
||||||
