Product Summary
The ltd121c33g is a 12.1-inch color TFT-LCD module.
Parametrics
ltd121c33g absolute maximum ratings: (1)Supply Voltage (VDD): -0.3 to 4.0 V, (VFL): 0 to 2.0 kV(rms); (2)FL Driving Frequency (fFL): 100 KHz; (3)Input Signal Voltage (VIN): -0.3 to VDD+0.3 V; (4)Operating Ambient Temperature *1: -10 to 65 ℃; (5)Operating Temperature for Panel*2: -10 to 80℃; (6)Storage Temperature: -20 to 80 ℃; (7)Storage Humidity (Max. wet bulb temperature = 39℃): 10 to 90 %(RH).
Features
ltd121c33g features: (1)12.1 SVGA color display with High Luminance; (2)Built in Long Life Lamps(MTTF:50,000 h) ( Condition/ Ta:25℃, IFL: 6mA(rms)(continuing lighting), fFL:50kHz ); (3)Replaceable structure of lamp units and Mounting compatible with LTM12C289 Series.

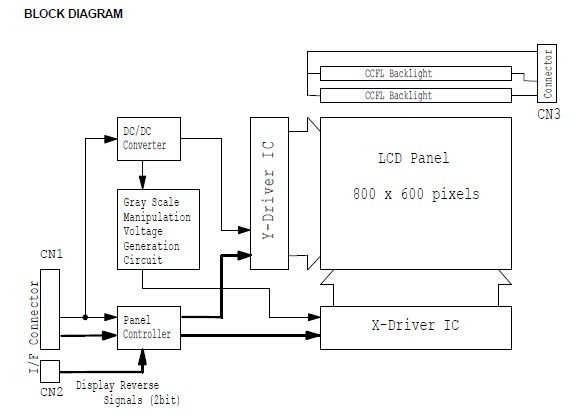

Diagrams
