Product Summary
The ltm10c035k is a 26cm colour tft-lcd module(10.4 type).
Parametrics
ltm10c035k absolute maximum ratings: (1)supply voltage (vdd): -0.3 to 7.0 v; (2)fl driving frequency (ffl): 0 to 100 khz; (3)input signal voltage (vin): -0.3 to vdd+0.3 v; (4)operating temperature: 0 to 50 °c; (5)storage temperature: -20 to 60 °c; (6)storage humidity (max. wet bulb temperature = 39°c): 10 to 90 %(rh).
Features
ltm10c035k features: (1)10.4” vga color display with high luminance; (2)built in long life lamps(30,000 h); (3)replaceable structure of lamp units; (4)full mechanical compatible with ltm10c273 (10.4” svga).

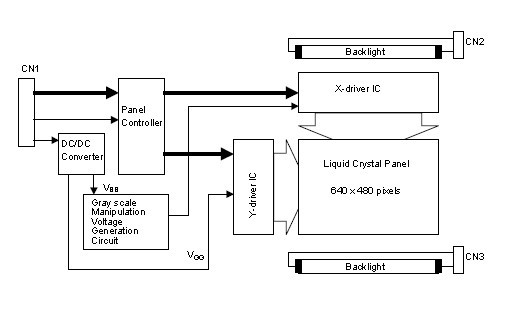

Diagrams
