Product Summary

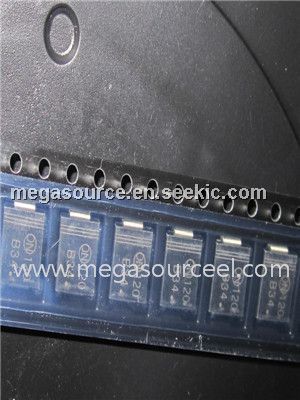

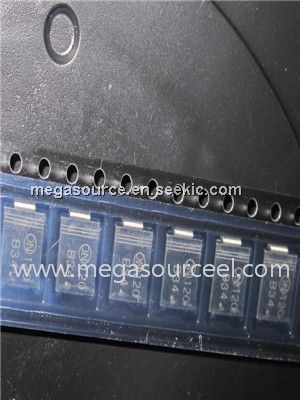

The mbrs340t3g is a surface mount schottky power rectifier. The mbrs340t3g employs the Schottky Barrier principle in a large area metal-to-silicon power diode. The mbrs340t3g is ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes, in surface mount applications where compact size and weight are critical to the system.

Parametrics

mbrs340t3g absolute maximum ratings: (1) Peak Repetitive Reverse Voltage VRRM: 40V; (2) Working Peak Reverse Voltage VRWM: 40V; (3) DC Blocking Voltage VR: 40V; (4) Average Rectified Forward Current IF (AV) : 3.0A@TL= 110°C, 4.0A @ TL= 105°C; (5) Nonrepetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60 Hz) IFSM: 80A; (6) Operating Junction Temperature TJ: -65 to 150°C; (7) ESD Ratings: Machine Model =C: >4000V, ESD Ratings: Human Body Model=3B: >8000V.

Features

mbrs340t3g features: (1) Small Compact Surface Mountable Package with JBend Leads; (2) Rectangular Package for Automated Handling; (3) Highly Stable Oxide Passivated Junction; (4) Very Low Forward Voltage Drop (0.5 V Max @ 3.0 A, TJ=25°C) ; (5) Excellent Ability to Withstand Reverse Avalanche Energy Transients; (6) GuardRing for Stress Protection; (7) Device Passes ISO 7637 Pulse #1; (8) Pb-Free Packages are Available.

Diagrams

mbrs340t3g marking diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBRS340T3G
MBRS340T3G
ON Semiconductor
Schottky (Diodes & Rectifiers) 3A 40V
Data Sheet
0-1: $0.32
1-25: $0.24
25-100: $0.20
100-500: $0.15
