Product Summary

The MURS320T3G is a surface mount ultrafast power rectifier. This series employs the state-of-the-art epitaxial construction with oxide passivation and metal overlay contact. The MURS320T3G is ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes, in surface mount applications where compact size and weight are critical to the system.



Parametrics

MURS320T3G absolute maximum ratings: (1)peak repetitive reverse voltage working peak reverse voltage dc blocking voltage vrrm vrwm vr: 200 v; (2)average rectified forward current if(av): 3.0 @ tl = 140°c; 4.0 @ tl = 130°c a; (3)non-;repetitive peak surge current (surge applied at rated load conditions halfwave, single phase, 60 hz)ifsm: 75 a; (4)operating junction temperature tj: -65 to +175°C.

Features

MURS320T3G features: (1)small compact surface mountable package with j-bend leads; (2)STK1rectangular package for automated handling; (3)STK1highly stable oxide passivated junction; (4)STK1low forward voltage drop (0.71 to 1.05 volts max @ 3.0 a, tj = 150°c); (5)STK1pb−free packages are available.

Diagrams

MURS320T3G pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

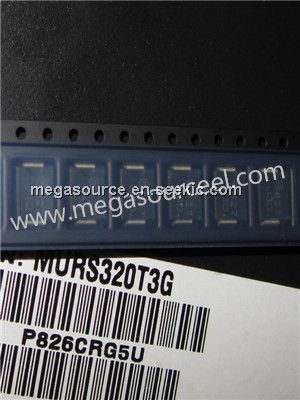

MURS320T3G
MURS320T3G

ON Semiconductor

Rectifiers 200V 3A Ultrafast

Data Sheet

0-1: $0.41
1-25: $0.32
25-100: $0.26
100-500: $0.19
