Product Summary
The MUR460 is a SWITCHMODE power rectifier. The state of the art device is designed for use in switching power supplies, inverters and as free wheeling diodes.
Parametrics
MUR460 absolute maximum ratings: (1)Peak repetitive reverse voltage, VRRM: 600 V; (2)Working peak reverse voltage, VRWM: 600 V; (3)DC blocking voltage, VR: 600 V; (4)Average rectified forward current (square wave) (mounting method #3 per note 2), IF(AV): 4.0A @ TA = 40℃ ; (5)Nonrepetitive peak surge current (surge applied at rated load conditions, half wave, single phase, 60 Hz), IFSM: 110 A; (6)Operating junction temperature storage temperature TJ, Tstg: -65 to +175 ℃.
Features
MUR460 features: (1)Ultrafast 25 ns, 50 ns and 75 ns recovery times; (2)175℃ operating junction temperature; (3)Low forward voltage; (4)Low leakage current; (5)High temperature glass passivated junction; (6)Reverse voltage to 600 V; (7)Shipped in plastic bags, 500 per bag; (8)Available in tape and reel, 1500 per reel, by adding a RL suffix to the part number; (9)Pb-free packages are available.

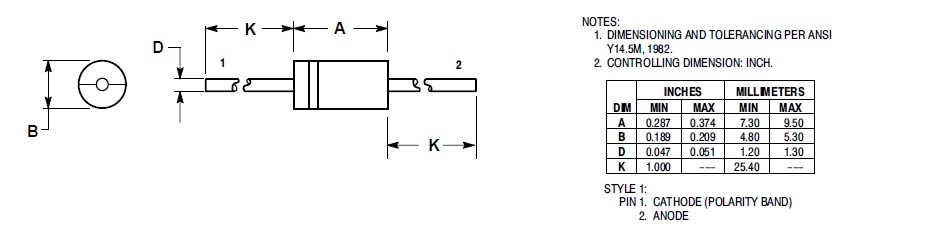

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MUR460 |
Taiwan Semiconductor |
Rectifiers 4A 600V |
Data Sheet |
|
|
|||||||||||||||
MUR460-E3/51 |
Vishay Semiconductors |
Rectifiers 400 Volt 4.0A 50ns 125 Amp IFSM |
Data Sheet |
Negotiable |
|
|||||||||||||||
MUR460RL |
ON Semiconductor |
Rectifiers 600V 4A UltraFast |
Data Sheet |
Negotiable |
|
|||||||||||||||
MUR460RLG |
ON Semiconductor |
Rectifiers 600V 4A UltraFast |
Data Sheet |
|
|
|||||||||||||||
MUR460-TP |
DIODE ULT FAST 4A 600V DO-201AD |
Data Sheet |
|
|
||||||||||||||||
MUR460G |
ON Semiconductor |
Rectifiers 600V 4A UltraFast |
Data Sheet |
|
|
|||||||||||||||
MUR460-E3/54 |
Vishay Semiconductors |
Rectifiers 4.0 Amp 600 Volt |
Data Sheet |
|
|
|||||||||||||||
MUR460-E3/73 |
Vishay Semiconductors |
Rectifiers 400 Volt 4.0A 50ns 125 Amp IFSM |
Data Sheet |
|
|
