Product Summary
The EP1S20F780C6 is a FPGA. It is based on a 1.5-V, 0.13-μm, all-layer copper SRAM process, with densities of up to 79,040 logic elements (LEs) and up to 7.5 Mbits of RAM. The EP1S20F780C6 offers up to 22 digital signal processing (DSP) blocks with up to 176 (9-bit × 9-bit) embedded multipliers, optimized for DSP applications that enable efficient implementation of high-performance filters and multipliers. The EP1S20F780C6 supports various I/O standards and also offer a complete clock management solution with its hierarchical clock structure with up to 420-MHz performance and up to 12 phase-locked loops (PLLs).
Parametrics
EP1S20F780C6 absolute maximum ratings: (1)VCCINT, Supply voltage With respect to ground: –0.5 to 2.4 V; (2)VCCIO: –0.5 to 4.6 V; (3)VI, DC input voltage: –0.5 to 4.6 V; (4)IOUT, DC output current, per pin: –25 to 40 mA; (5)TSTG, Storage temperature No bias: –65 to 150℃; (6)TJ, Junction temperature BGA packages under bias: 135℃ max.
Features
EP1S20F780C6 features: (1)Dedicated differential and single-ended I/O buffers; (2)3.3-V, 64-bit, 66-MHz PCI compliance; (3)3.3-V, 64-bit, 133-MHz PCI-X 1.0 compliance; (4)Joint Test Action Group (JTAG) boundary-scan test (BST) support; (5)Differential on-chip termination for LVDS I/O standard; (6)Programmable pull-up during configuration; (7)Output drive strength control; (8)Slew-rate control; (9)Tri-state buffers; (10)Bus-hold circuitry; (11)Programmable pull-up resistors; (12)Programmable input and output delays; (13)Open-drain outputs; (14)DQ and DQS I/O pins; (15)Double-data rate (DDR) Registers.

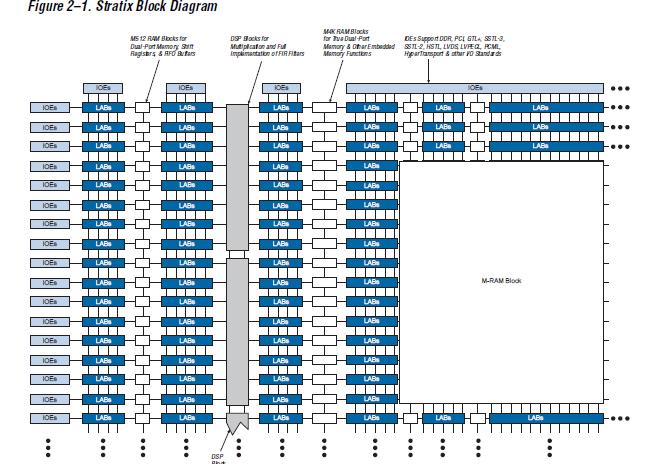

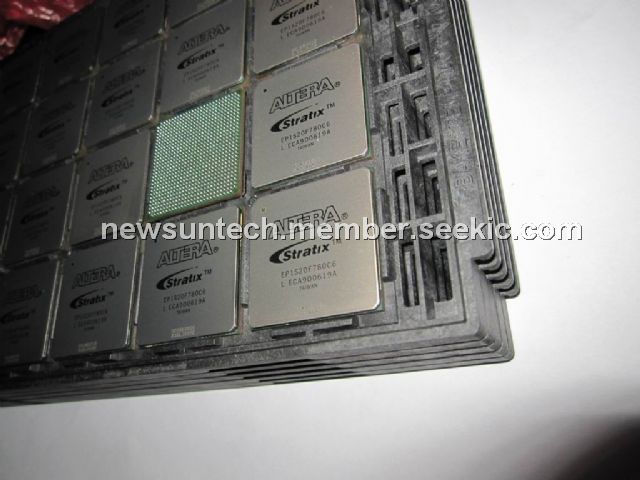

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP1S20F780C6 |
|
IC STRATIX FPGA 18K LE 780-FBGA |
Data Sheet |
|
|
||||||
|
EP1S20F780C6N |
|
IC STRATIX FPGA 20K LE 780-FBGA |
Data Sheet |
|
|
||||||
