Product Summary
The R2000 is a high voltage silicon rectifier. The mechanical data of the R2000 are: Case : JEDEC DO-204AL molded plastic; Epoxy : UL 94V-O rate flame retardant; Lead : MIL-STD-202F method 208C guaranteed; Mounting Position : Any; Weight : 0.35 gram.
Parametrics
R2000 maximum ratings: (1)Maximum DC reverse current TA=25℃ IR: 5.0μA; (2)at rated DC blocking voltage TA=100℃ IR: 50μA; (3)Typical junction capacitance CJ: 30pF; (4)Operating junction and storage temperature range TJ,TSTG: -65 to +175℃; (5)Maximum average forward rectified current at TA=50℃ I(AV): 0.2Amps.
Features
R2000 features: (1)Low cost; (2)Low leakage; (3)Low forward voltage drop; (4)High current capability.

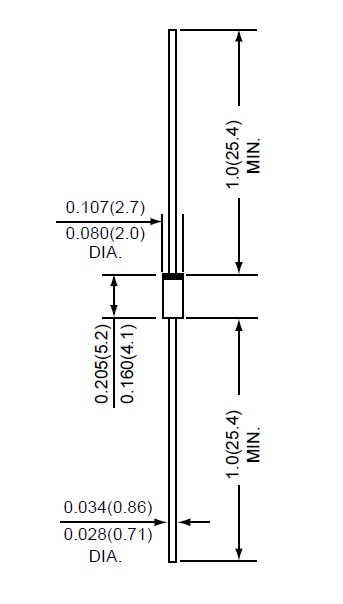

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 R2000 |
Rectron |
Rectifiers Use 583-R2000-B |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
R2000-B |
Rectron |
Rectifiers 200mA 2000V |
Data Sheet |
|
|
||||||||||||||||||||
|
R2000F |
Rectron |
Rectifiers Use 583-R2000F-B |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
R2000F-B |
Rectron |
Rectifiers 200mA 2000V 500ns |
Data Sheet |
|
|
||||||||||||||||||||
 |
R2000F-T |
Rectron |
Rectifiers 200mA 2000V 500ns |
Data Sheet |
|
|
||||||||||||||||||||
|
R2000PK30 |
Ruttonsha |
Diodes (General Purpose, Power, Switching) 2080 Amp 3000 Volt |
Data Sheet |
|
|
||||||||||||||||||||
|
R2000-T |
Rectron |
Rectifiers 200mA 2000V |
Data Sheet |
|
|
||||||||||||||||||||
|
R2000-TP |
|
DIODE STD REC 500MA 2000V DO-41 |
Data Sheet |
|
|
||||||||||||||||||||
