Product Summary
The GS74116TP-15I is a high speed CMOS static RAM organized as 262,144-words by 16-bits. Static design eliminates the need for external clocks or timing strobes. Operating on a single 3.3V power supply and all inputs and outputs are TTL compatible. The GS74116TP-15I is available in a 7.2×11.65 mm Fine Pitch BGA package, 400 mil SOJ and 400 mil TSOP Type-II packages.
Parametrics
GS74116TP-15I absolute maximum ratings: (1)Supply Voltage VDD: -0.5 to +4.6 V; (2)Input Voltage VIN: -0.5 to VDD+0.5V; (3)Output Voltage VOUT: -0.5 to VDD+0.5V; (4)Allowable power dissipation PD: 0.7 W; (5)Storage temperature TSTG: -55 to 150℃.
Features
GS74116TP-15I features: (1)Fast access time: 8, 10, 12, 15ns; (2)CMOS low power operation: 170/145/130/110 mA at min.cycle time; (3)Single 3.3V ± 0.3V power supply; (4)All inputs and outputs are TTL compatible; (5)Byte control; (6)Fully static operation; (7)Industrial Temperature Option: -40 to 85℃; (8)Package line up.

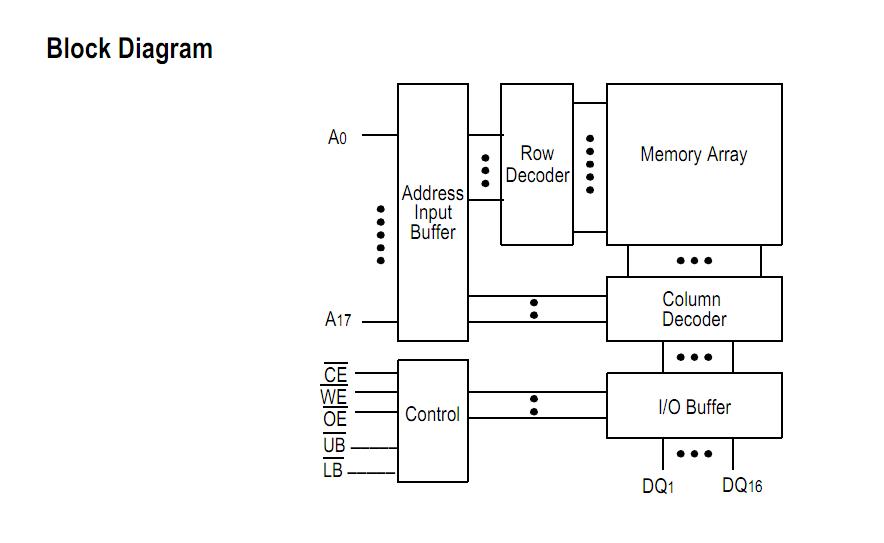

Diagrams
 |
