Product Summary
The HLMP-ED16-TW000 is a high intensity blue and green LED based on the most efficient and cost effective InGaN material technology. This LED lamps is untinted and non-diffused, T-1 packages incorporating second-generation optics producing well defined spatial radiation patterns at specific viewing cone angles. The applications of the HLMP-ED16-TW000 include Traffic signals, Commercial outdoor advertising, Front panel backlighting and Front panel indicator.
Parametrics
HLMP-ED16-TW000 absolute maximum ratings: (1)DC forward current: 30 mA; (2)Peak pulsed forward current: 100 mA; (3)Power dissipation: 116 mW; (4)LED junction temperature: 110℃; (5)Operating temperature range: -40 to +85℃; (6)Storage temperature range: -40 to +100℃.
Features
HLMP-ED16-TW000 features: (1)Well defined spatial radiation pattern; (2)High luminous output; (3)Untinted, Non-diffused; (4)Viewing angle: 15o, 23o and 30o; (5)Standoff or non-standoff leads; (6)Superior resistance to moisture.

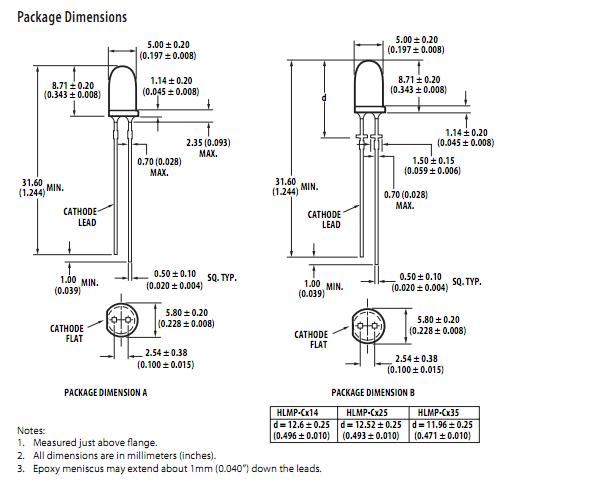

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HLMP-ED16-TW000 |
Avago Technologies |
Standard LED - Through Hole Red Water Clear 630nm 7200mcd |
Data Sheet |
Negotiable |
|
||||||||||||
