Product Summary
The AD1865R-J is a complete, dual 18-bit DAC offering excellent THD+N and SNR while requiring no external components. Two complete signal channels of AD1865R-J are included. This results in cophased voltage or current output signals and eliminates the need for output demultiplexing circuitry. The monolithic AD1865R-J chip includes CMOS logic elements, bipolar and MOS linear elements and laser-trimmed thin-film resistor elements, all fabricated on Analog Devices’ ABCMOS process.
Parametrics
AD1865R-J absolute maximum ratings: (1)VL to DGND: 0V to 6.0V; (2)VS to AGND: 0V to 6.0V; (3)–VS to AGND: –6.0V to 0V; (4)AGND to DGND: ±0.3 V; (5)Digital Inputs to DGND: –0.3 to VL; (6)Short Circuit Protection: Indefinite Short to Ground; (7)Soldering (10 sec): +300℃.
Features
AD1865R-J features: (1)Dual Serial Input, Voltage Output DACs; (2)No External Components Required; (3)110 dB SNR; (4)0.003% THD+N; (5)Operates at 16 3 Oversampling per Channel; (6)65 Volt Operation; (7)Cophased Outputs; (8)116 dB Channel Separation; (9)Pin Compatible with AD1864; (10)DIP or SOIC Packaging; (11)APPLICATIONS; (12)Multichannel Audio Applications; (13)Compact Disc Players; (14)Multivoice Keyboard Instruments; (15)DAT Players and Recorders; (16)Digital Mixing Consoles; (17)Multimedia Workstations.

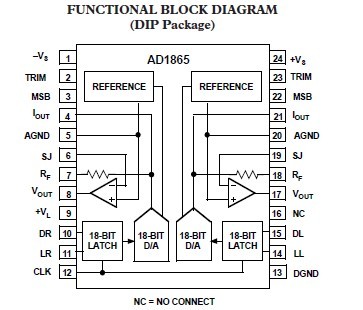

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

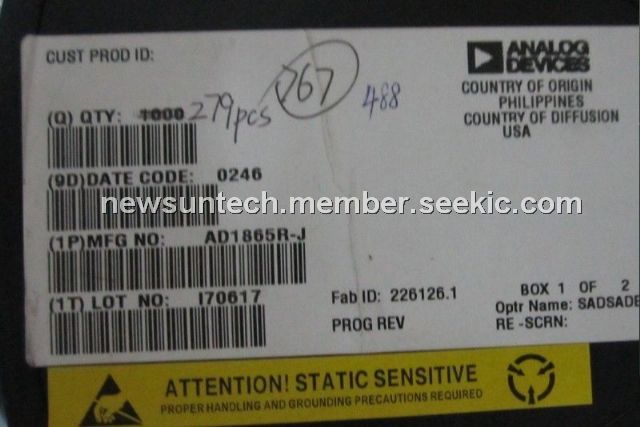

AD1865R-J |
Analog Devices Inc |
IC DAC AUDIO DUAL 18BIT 28SOIC |
Data Sheet |
|
|
|||||||||
