Product Summary

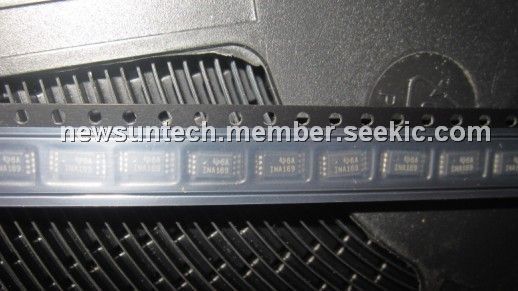

The INA169QPWRG4Q1 is high-side, unipolar, current shunt monitor. Wide input common-mode voltage range, high-speed, low quiescent current, and tiny TSSOP-8 packaging enable use in a variety of applications. The INA169QPWRG4Q1 converts a differential input voltage to a current output. This current is converted back to a voltage with an external load resistor that sets any gain from 1 to over 100. Although designed for current shunt measurement, the circuit invites creative applications in measurement and level shifting. The INA169QPWRG4Q1 is available in TSSOP-8 and are specified for the –40℃ to 125℃ temperature range.

Parametrics

INA169QPWRG4Q1 absolute maximum ratings: (1)Supply voltage range, V+: -0.3V to 75V; (2)Analog input voltage range, VIN+, VIN-, Common mode: -0.3V to 75V; (3)Analog input voltage range, (VIN+) - (VIN-), Differential: -40V to 2V; (4)Analog output range, out: -0.3V to 40V; (5)Operating temperature range: -55℃ to 125℃; (6)Storage temperature range: -65℃ to 150℃; (7)Maximum junction temperature: 150℃; (8)Thermal resistance, junction-to-ambient, RθJA: 150℃/W; (9)Lead temperature (soldering, 10 seconds): 260℃.

Features

INA169QPWRG4Q1 features: (1)Qualified for Automotive Applications; (2)ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; (3)Exceeds 200 V Using Machine Model (C = 200 pF, R = 0); (4)Complete Unipolar High-Side Current Measurement Circuit; (5)Wide Supply and Common-Mode Ranges; (6)Independent Supply and Input Common-Mode Voltages; (7)Single Resistor Gain Set; (8)Low Quiescent Current (60 μA Typ); (9)Wide Temperature Range.

Diagrams

INA169QPWRG4Q1 pin diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
INA169QPWRG4Q1
INA169QPWRG4Q1

Texas Instruments

Current & Power Monitors & Regulators CRNT SHUNT MONITOR

Data Sheet

0-1430: $0.80
1430-2000: $0.76
2000-5000: $0.73
5000-10000: $0.71
