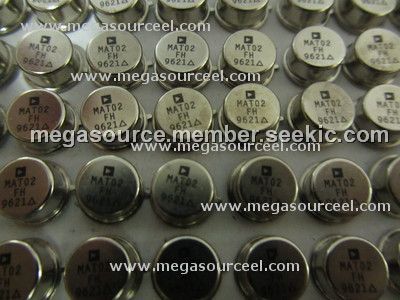

Product Summary
The MAT02FH is an NPN dual monolithic transistor. It is optimized for very low noise, low drift, and low rBE. Precision Monolithics’ exclusive Silicon Nitride Triple-Passivation process stabilizes the critical device parameters over wide ranges of temperature and elapsed time. Also, the high current gain (hFE) of the MAT02FH is maintained over a wide range of collector current. Exceptional characteristics of the MAT02FH include offset voltage of 50 µV max (A/E grades) and 150 uV max F grade.
Parametrics
MAT02FH absolute maximum ratings: (1)Collector-Base Voltage (BVCBO): 40 V; (2)Collector-Emitter Voltage (BVCEO): 40 V; (3)Collector-Collector Voltage (BVCC): 40 V; (4)Emitter-Emitter Voltage (BVEE): 40 V; (5)Collector Current (IC): 20 mA; (6)Emitter Current (IE): 20 mA; (7)Total Power Dissipation: 1.8 W; (8)Operating Temperature Range: –55℃ to +125℃; (9)Operating Junction Temperature: –55℃ to +150℃; (10)Storage Temperature: –65℃ to +150℃; (11)Lead Temperature (Soldering, 60 sec): +300℃; (12)Junction Temperature: –65℃ to +150℃.
Features
MAT02FH features: (1)Low Offset Voltage: 50 mV max; (2)Low Noise Voltage at 100 Hz, 1 mA: 1.0 nV/√Hz max; (3)High Gain (hFE): 500 min at IC = 1 mA, 300 min at IC = 1 mA; (4)Excellent Log Conformance: rBE . 0.3 V; (5)Low Offset Voltage Drift: 0.1 uV/8℃ max; (6)Improved Direct Replacement for LM194/394; (7)Available in Die Form.

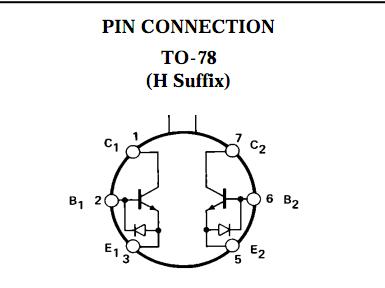

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAT02FH |
Analog Devices Inc |
IC TRANS DUAL MATCHED NPN TO78-6 |
Data Sheet |
|
|
||||||||||||
 |
MAT02FHZ |
Analog Devices Inc |
IC TRANS DUAL MATCHED NPN TO-78 |
Data Sheet |
|
|
||||||||||||
