Product Summary
The MC145170D1 is a high performance, non–inverting octal buffer operating from a 2.7 to 3.6V supply. The MC145170D1 is suitable for memory address driving and all TTL level bus oriented transceiver applications. Current drive capability is 12mA at the outputs. The Output Enable (OE) input, when HIGH, disables the output by placing them in a HIGH Z condition.
Parametrics
MC145170D1 absolute maximum ratings: (1)VCC DC Supply Voltage –0.5 to +7.0 V; (2)VI DC Input Voltage –0.5 ≤ VI ≤ VCC + 0.5V V; (3)VO DC Output Voltage –0.5 ≤ VO ≤ VCC + 0.5 V; (4)IIK DC Input Diode Current –20 mA; (5)IOK DC Output Diode Current –20 mA; (6)IO DC Output Source/Sink Current ±50 mA; (7)ICC DC Supply Current ±400 mA; (8)IGND DC Ground Current ±400 mA; (9)TSTG Storage Temperature Range –65 to +150℃.
Features
MC145170D1 features: (1)Designed for 2.7 to 3.6V VCC Operation – Ideal for Low Power/Low Noise Applications; (2)Guaranteed Simultaneous Switching Noise Level and Dynamic Threshold Performance; (3)Guaranteed Skew Specifications; (4)Guaranteed Incident Wave Switching into 75Ω; (5)Low Static Supply Current (10μA) Substantially Reduces System Power Requirements; (6)Latchup Performance Exceeds 500mA; (7)ESD Performance: Human Body Model >2000V.

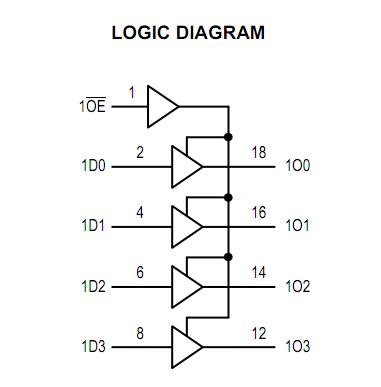

Diagrams
 |
