Product Summary
The MCZ33291 device is an eight-output, low-side power switch with 8-bit serial input control. The MCZ33291 is a versatile circuit designed for automotive applications, but is well suited for other environments. It incorporates SMARTMOS technology, with CMOS logic, bipolar/MOS analog circuitry, and DMOS power MOSFETs. The MCZ33291 interfaces directly with a microcontroller to control various inductive or incandescent loads. The circuit’s innovative monitoring and protection features include very low standby current, SPI cascade fault reporting capability, internal 53 V clamp on each output, output-specific diagnostics, and independent shutdown of outputs.
Parametrics
MCZ33291 absolute maximum ratings: (1)Power Supply Voltage: Normal Operation (Steady-State): -1.5 to 26.5 V, Transient Conditions: -13 to 60 V; (2)Logic Supply Voltage: -0.3 to 7.0 V; (3)Input Pin Voltage: -0.3 to 7.0 V; (4)Output Clamp Voltage 5.0 mA ≤ IOUT ≤ 0.5 A: 45 to 65 V; (5)Output Self-Limit Current: 1.0 to 3.0 A; (6)Continuous Per Output Current: 500 mA; (7)ESD Voltage: Human Body Model: ±2000 V, Machine Model: ±200 V; (8)Output Clamp Energy: 50 mJ; (9)Recommended Frequency of SPI Operation: 3.0 MHz; (10)Storage Temperature: -55 to 150 ℃; (11)Operating Case Temperature: -40 to 125 ℃; (12)Operating Junction Temperature: -40 to 150 ℃; (13)Power Dissipation (TA = 25℃): 2.0 W.
Features
MCZ33291 features: (1)Designed to Operate Over Wide Supply Voltages of 5.5 V to 26.5 V; (2)Interfaces to Microprocessor Using 8-Bit SPI I/O Protocol up to 3.0 MHz; (3)1.0A Peak Current Outputs with Maximum RDS(ON) of 1.6Ω at TJ - 150℃; (4)Outputs Current-Limited to Accommodate In-Rush Currents Associated with Switching Incandescent Loads; (5)Output Voltages Clamped to 53 V During Inductive Switching; (6)Maximum Sleep Current (IPWR) of 25 μA; (7)Maximum of 4.0 mA IDD During Operation; (8)Pb-Free Packaging Designated by Suffix Code EG.

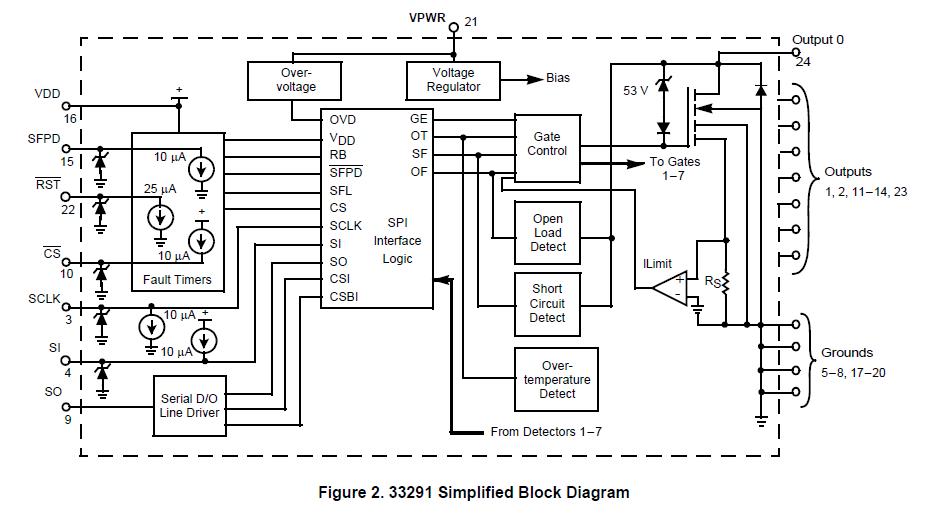

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCZ33291EG |
Freescale Semiconductor |
Power Switch ICs - Power Distribution BASIC OCTAL SERIAL SW |
Data Sheet |
Negotiable |
|
||||
|
MCZ33291EGR2 |
Freescale Semiconductor |
Power Switch ICs - Power Distribution BASIC OCTAL SERIAL SW |
Data Sheet |
Negotiable |
|
||||
|
MCZ33291LEG |
Freescale Semiconductor |
Power Switch ICs - Power Distribution BASIC OCTAL SER SW |
Data Sheet |
Negotiable |
|
||||
|
MCZ33291LEGR2 |
Freescale Semiconductor |
Power Switch ICs - Power Distribution BASIC OCTAL SER SW |
Data Sheet |
Negotiable |
|
||||
