Product Summary
The MT9D001C12STC is a 2-megapixel CMOS image sensor which features DigitalClarity, our breakthrough, lownoise CMOS imaging technology that achieves CCD image quality (based on signal-to-noise ratio and lowlight sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS. Our MT9D001C12STC produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes MT9D001C12STC the perfect choice for a wide range of consumer and industrial applications, including digital still cameras, digital video cameras, and PC cameras.
Parametrics
MT9D001C12STC absolute maximum ratings: (1)Optical Format: 1/2-inch (4:3); (2)Active Imager Size: 6.7mm(H) x 5.0mm (V), 8.4mm Diagonal; (3)Active Pixels: 1600H x 1200V; (4)Pixel Size: 4.2um x 4.2um; (5)Color Filter Array: RGB Bayer Pattern; (6)Shutter Type: Electronic Rolling Shutter (ERS); (7)ADC Resolution: 10 bit; (8)Responsivity: 1.2 V/lux-sec (550nm); (9)Dynamic Range: >61dB; (10)SNRMAX: >44dB; (11)Supply Voltage: 3.0 to 3.6 Volts (3.3V Nominal); (12)Power Consumption: 250mW (Nominal); (13)Operating Temperature: 0℃ to +60℃; (14)Packaging: 48 CLCC.
Features
MT9D001C12STC features: (1)DigitalClarity CMOS Imaging Technology; (2)High frame rate; (3)Excellent low light performance; (4)Low dark current; (5)Simple two-wire serial interface; (6)Auto black level calibration; (7)Programmable Controls; (8)Register and pin compatible with the 1.3MP MT9M001.

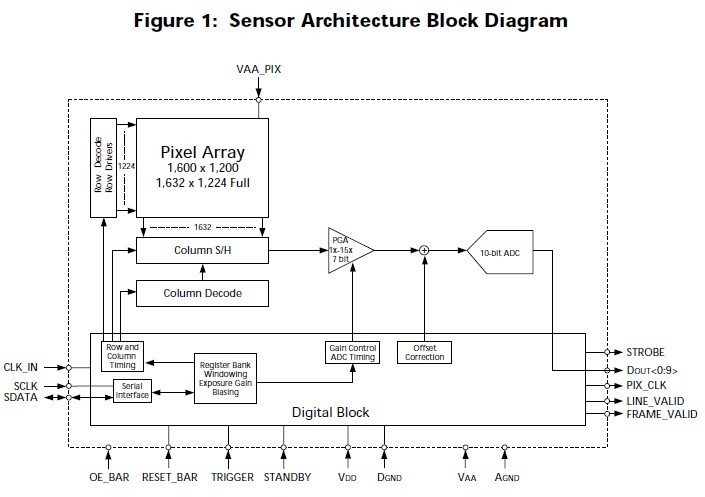

Diagrams
 |
