Product Summary
The MPTE-5 is a 1500 Watt Peak Power Mosorb Zener Transient Voltage Suppressor. Mosorb device is designed to protect voltage sensitive components from high voltage, high–energy transients. THe MPTE-5 has excellent clamping capability, high surge capability, low zener impedance and fast response time.
Parametrics
MPTE-5 absolute maximum ratings: (1)Peak Power Dissipation, PPK: 1500 Watts; (2)Steady State Power Dissipation, PD: 5.0Watts; (3)Thermal Resistance, Junction–to–Lead: 20℃/W; (4)Forward Surge Current, IFSM: 200 Amps; (5)Operating and Storage Temperature Range, TJ, Tstg: – 65 to +175℃.
Features
MPTE-5 features: (1)Working Peak Reverse Voltage Range – 5 V to 45 V; (2)Peak Power – 1500 Watts @ 1 ms; (3)ESD Rating of Class 3 (>16 KV) per Human Body Model; (4)Maximum Clamp Voltage @ Peak Pulse Current; (5)Low Leakage < 5 A Above 10 V; (6)Response Time is Typically < 1 ns.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPTE-5 (1N6373) |
Littelfuse |
TVS Diodes - Transient Voltage Suppressors - |
Data Sheet |
Negotiable |
|
||||
|
MPTE-5RL4G |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 5V 1500W Unidirectional |
Data Sheet |
Negotiable |
|
||||
|
MPTE-5RL4 |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 5V 1500W |
Data Sheet |
Negotiable |
|
||||
 |
MPTE-5 |
|

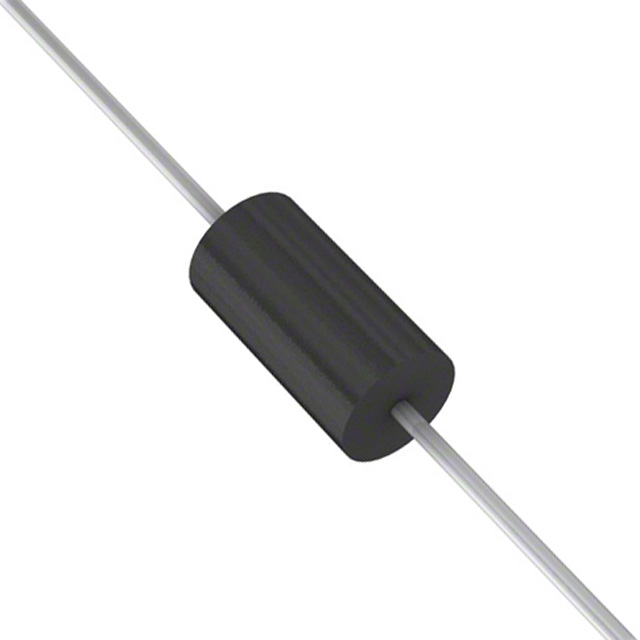

DIODE TVS 5V 1500W UNI DO-201AD |
Data Sheet |
Negotiable |
|
||||
