Product Summary
The NCP1086ST-33T3G is a linear regulator. It provides 1.5 A at 3.3 V or adjustable output voltage. The adjustable output voltage device uses two external resistors to set the output voltage within a 1.25 V to 5.5 V range. The NCP1086ST-33T3G is intended for use as post regulator and microprocessor supply. The fast loop response and low dropout voltage make the NCP1086ST-33T3G ideal for applications where low voltage operation and good transient response are important.
Parametrics
NCP1086ST-33T3G absolute maximum ratings: (1)Supply Voltage, VCC: 7.0 V; (2)Operating Temperature Range: -40 to +70℃; (3)Junction Temperature: 150℃; (4)Storage Temperature Range: -60 to +150℃; (5)ESD Damage Threshold: 2.0 kV.
Features
NCP1086ST-33T3G features: (1)Output Current to 1.5 A; (2)Output Accuracy to ±1% Over Temperature; (3)Dropout Voltage (Typical) 1.05 V @ 1.5 A; (4)Fast Transient Response; (5)Fault Protection Circuitry; (6)Current Limit; (7)Thermal Shutdown; (8)Pb-Free Packages are Available.

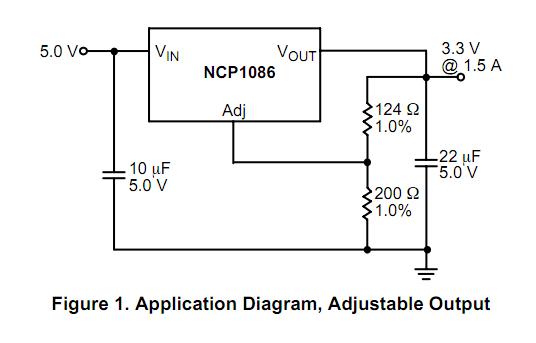

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCP1086ST-33T3G |
ON Semiconductor |
Low Dropout (LDO) Regulators 3.3V 1.5A Commercial Temp |
Data Sheet |
Negotiable |
|
||||
