Product Summary
The TA8637BP is a VHF modulator for VCR or VDP.
Parametrics
TA8637BP absolute maximum ratings: (1)supply voltage, VCC: 7V; (2)power dissipation, PD: 750mA; (3)input signal voltage, ejn: 2.5Vp-p; (4)input voltage at pin 7, Vin: GND-0.3 to VCC+0.3V; (5)operating temperature, Topr: -10 to 70℃; (6)storage temperature, Tstg: -55 to 150℃.
Features
TA8637BP features: (1)video clamp; (2)white clip; (3)main carrier oscillator; (4)main carrier attenuator; (5)video modulator; (6)sound modulator; (7)sound FM modulator; (8)channel switch; (9)low power operation; (10)regulator circuit is included.

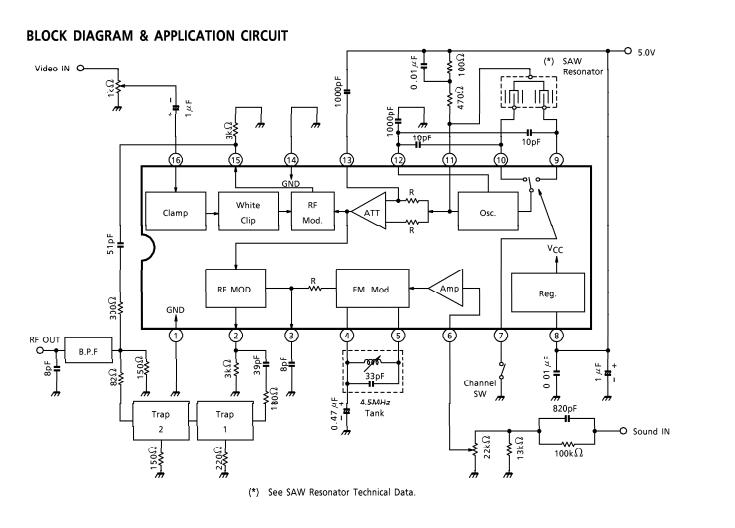

Diagrams
 |
