Product Summary
The VNH3SP30 is a full bridge motor driver intended for a wide range of automotive applications. The VNH3SP30 incorporates a dual monolithic HSD and two Low-Side switches. The HSD switch of the VNH3SP30 is designed using STMicroelectronics VIPower M0-3 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuitry. The Low-Side switches are vertical MOSFETs manufactured using STMicroelectronics proprietary EHD (“STripFET.”) process.
Parametrics
VNH3SP30 absolute maximum rating: (1)VCC Supply voltage: -0.3~40 V; (2)Imax1 Maximum output current (continuous): 30 A; (3)IR Reverse output current (continuous): -30 A; (4)IIN Input current (INA and INB pins): +/- 10 mA; (5)IEN Enable input current (DIAGA/ENA and DIAGB/ENB pins): +/- 10 mA; (6)Ipw PWM input current: +/- 10 mA.
Features
VNH3SP30 features: (1)Output current:30 A; (2)5V logic level compatible inputs; (3)Undervoltage and overvoltage shut-down; (4)Overvoltage clamp; (5)Thermal shut down; (6)Cross-conduction protection; (7)Linear current limiter; (8)Very low stand-by power consumption; (9)PWM operation up to 10 KHz; (10)Protection against: Loss of ground and loss of VCC.

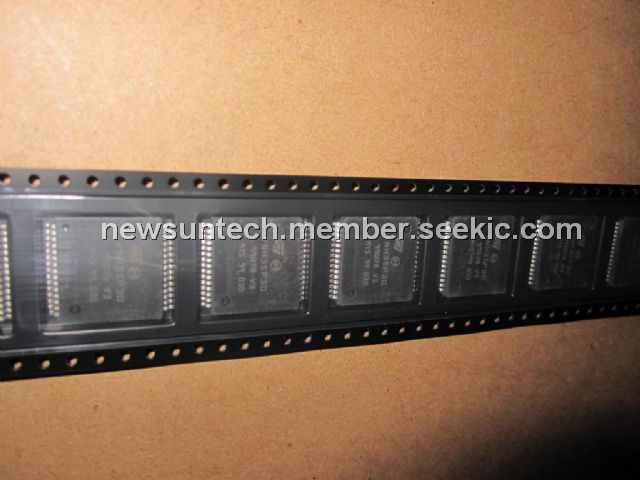

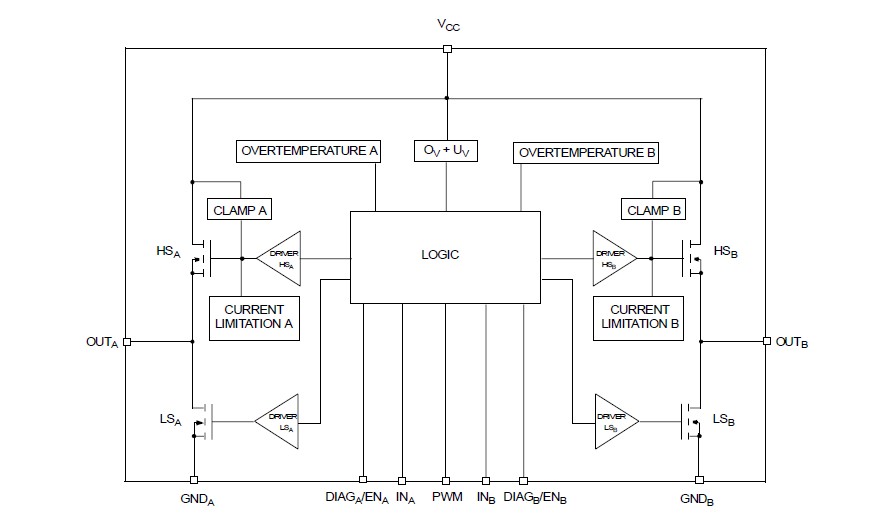

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VNH3SP30 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
VNH3SP30-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers H-Bridge Driver |
Data Sheet |
|
|
||||||||||||
|
VNH3SP30TR-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers VIPOWER |
Data Sheet |
|
|
||||||||||||
