The TDA1515BQ is a monolithic integrated class-B output amplifier in a 13-lead single in-line (SIL) plastic power package. The device is primarily developed for car radio applications, and also to drive low-impedance loads.
Parametrics
TDA1515BQ absolute maximum ratings: (1)Supply voltage; operating (pin 10) VP max: 18 V; (2)Supply voltage; non-operating VP max: 28 V; (3)Supply voltage; during 50 ms (load dump protection) VP max: 45 V; (4)Peak output current IOM max: 6 A; (5)Storage temperature range Tstg: -55 to + 150℃; (6)Crystal temperature Tc max: 150℃; (7)A.C. and d.c. short-circuit safe voltage max: 18 V; (8)Reverse polarity max: 10 V.
Features
TDA1515BQ features: (1)flexibility in use-mono BTL as well as stereo; (2)high output power; (3)low offset voltage at the output (important for BTL); (4)large usable gain variation; (5)very good ripple rejection; (6)internal limited bandwidth for high frequencies; (7)low stand-by current possibility (typ. 1 μA), to simplify required switches; TTL drive possible; (8)low number and small sized external components; (9)high reliability.

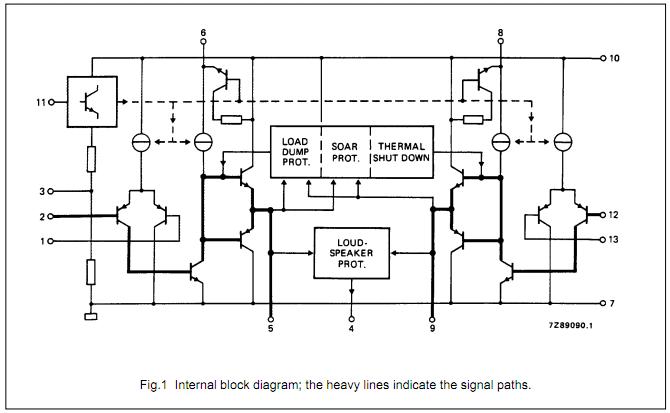

Diagrams
